Space & Room

High-quality fabrics and soft ornamentation add human touches to your interior, transforming the open cabin into an inviting space where everyone feels comfortable.

Space & Room

DIMENSIONS

Width (mm)

1825 mm

Length (mm)

4190 mm

Wheelbase (mm)

2580 mm

Height (mm)

1560 mm

Front tread (mm)

1570 mm

Rear tread (mm)

1570 mm

CAPACITIES

Fuel tank capacity (l)

36 l

Towing capacity with brakes (kg)

750 kg

Towing capacity without brakes (kg)

650 kg

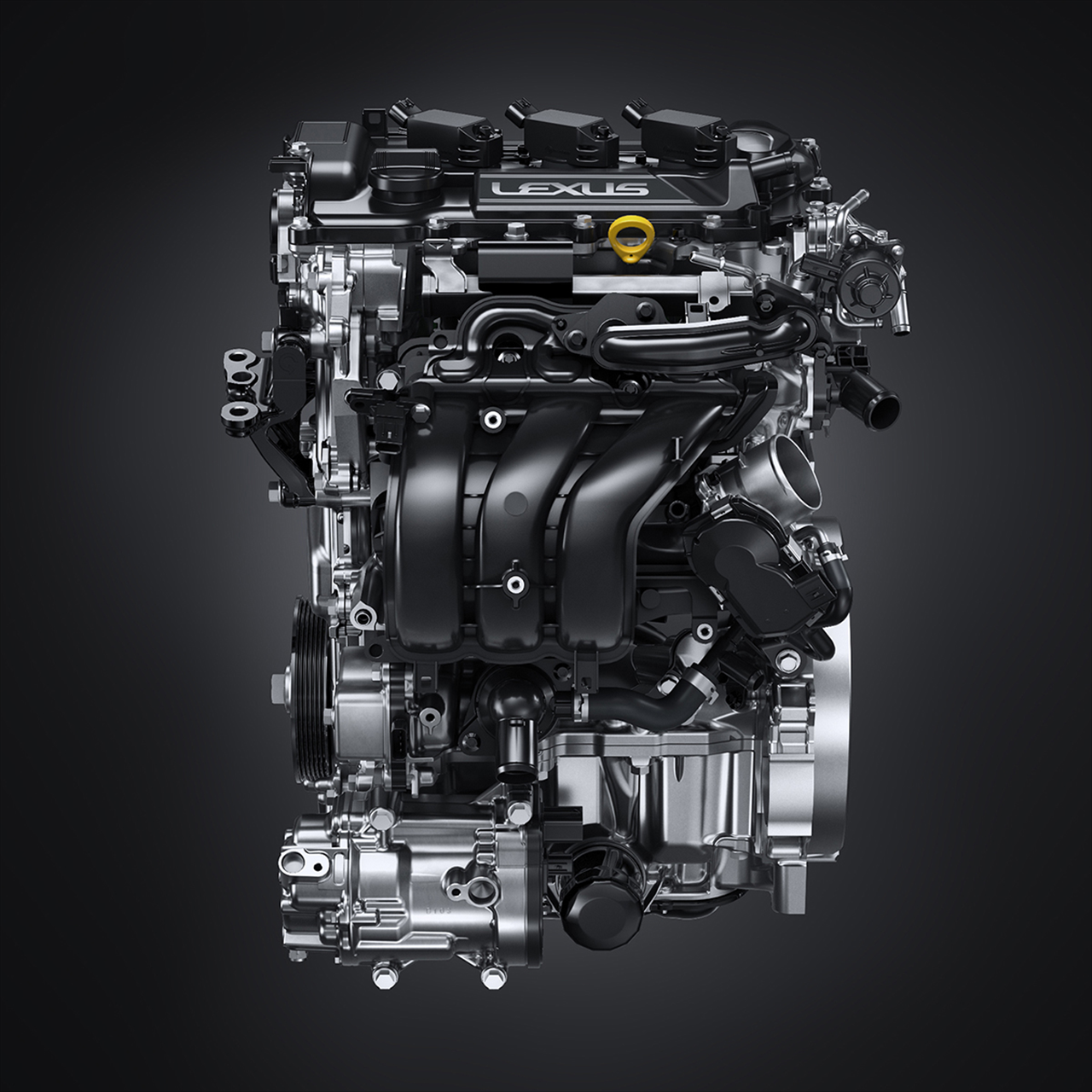

Engine

Drive with pure excitement, powered by a high-performance engine that helps you take on any journey with confidence.

Engine

PERFORMANCE

Acceleration 0-62 mph (s)

9.2 seconds

Drag coefficient

0.34

ENGINE

Valve mechanism

12-Valve DOHC, Chain Drive (With Dual VVT-i)

Compression ratio

14.0:1

Maximum output (DIN hp)

136 DIN hp

Maximum power (DIN hp@rpm)

91/5500 DIN hp@rpm

Maximum power (kW@rpm)

67/5500 kW@rpm

Hybrid combined output (DIN hp)

136 DIN hp

Hybrid combined output (kW)

100 kW

Maximum torque

120/3600-4800 Nm@rpm

Engine speed for maximum output

120

Maximum torque (Nm@rpm)

120

Cylinders & configuration

3 cylinders, in line

TRANSMISSION

Drive

FWD

SUSPENSION

Suspension Front

MacPherson Strut

Suspension Rear

Torsion Beam

BRAKES

Brakes Front

Ventilated disc 1-cylinder

Front disc size (mm)

15''Disc 25V

Brakes Rear

Solid disc 1-cylinder

Rear disc size (mm)

15"Disc

WEIGHTS

Gross Vehicle Weight Front (kg)

1755 kg

Kerb weight (min.-max.) (kg)

1330 kg

TOTAL SYSTEM OUTPUT

Maximum Power (kW)

69.0

FRONT ELECTRIC MOTOR

Type (front)

Permanent magnet synchronous motor

Electric Front Motor: Type

Permanent magnet synchronous motor

Maximum power (front) (DIN hp)

94 DIN hp

Maximum power (front) (kW)

69.0 kW

Maximum torque (front)

185.0 Nm

Maximum torque (Nm)

185.0 Nm

Charging

Battery type

Nickel-metal Hydride Battery

Nominal Voltage

201.6 V

Number of modules

168

Hybrid vehicle battery: Capacity Ah (hr)

5.0 Ah

Battery capacity (Ah)

5.0 Ah

FUEL CONSUMPTION

Fuel Consumption

60.1 - 62.7 mpg

EMISSIONS

CO2 Combined WLTP (g/km)

102 g/km

NVH Performance

Sound Level (Drive by)

66.0 dB(A)

Safety

Find peace of mind as you drive with Lexus safety. Whether you’re reversing into a parking space or approaching a busy junction, Lexus Safety System + makes sure you're always in safe hands wherever you go.

Safety
Lexus Safety System +

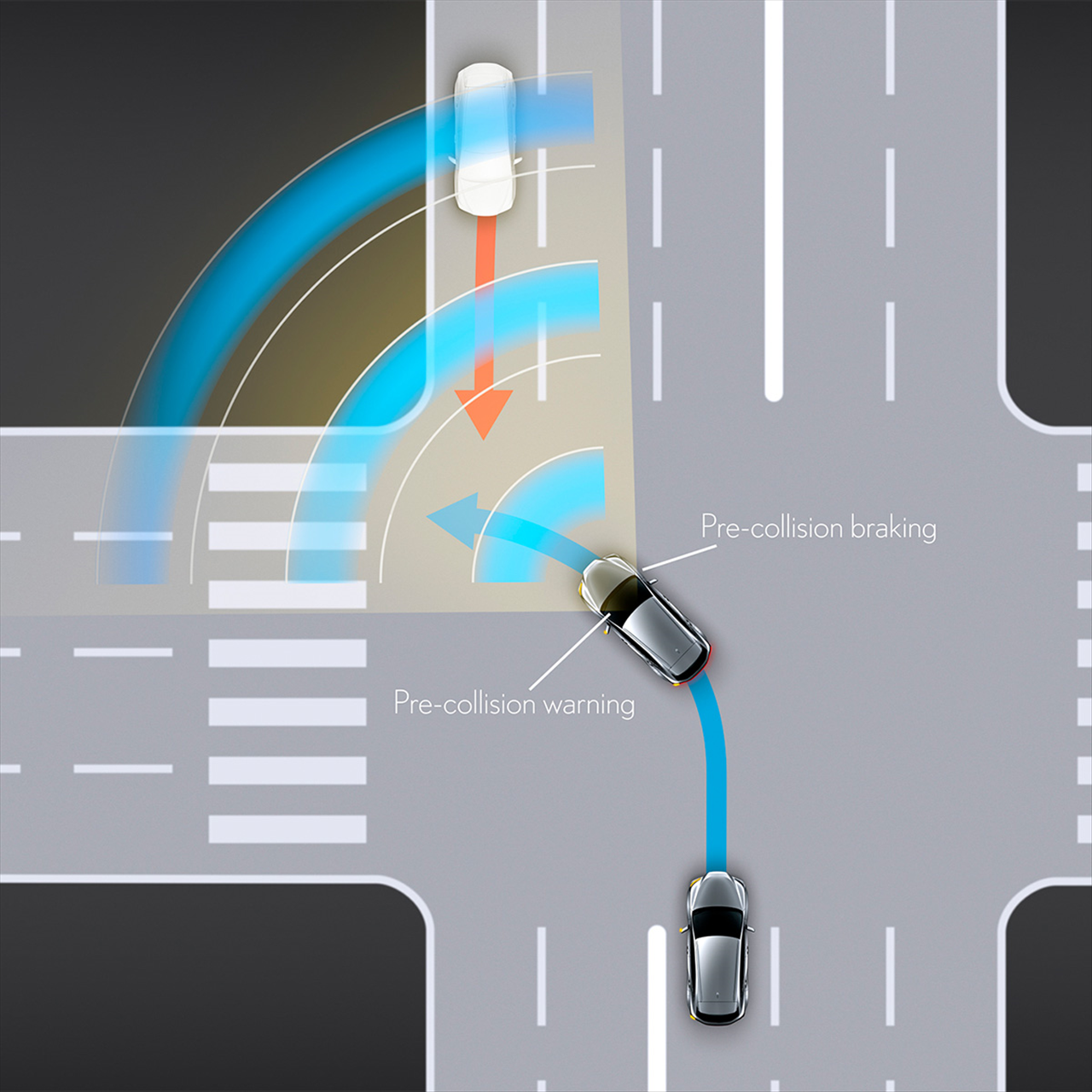

Pre-Collision System (PCS)
Front pedestrian detection
Dynamic Radar Cruise Control (DRCC)
Traction Control (TRC)
EV (Electric Vehicle) mode
Electric Power Steering (EPS)
Anti-lock Braking System (ABS)
Electronic Brake-force Distribution (EBD)
Hill Assist Control (HAC)
Vehicle Stability Control (VSC)
Electric Parking Brake (EPB)
Automatic High Beam (AHB)
Tyre Pressure Warning System (TPWS) with Auto location
Lane Tracing Assist (LTA)
Road Sign Assist (RSA)
Acoustic Vehicle Alerting System (AVAS)
Emergency Steering Assist (ESA)
Intersection Turn Assist (ITA)
Front cyclist detection
Front motorcycle rider detection, daytime only
Road sign linked speed limiter
Emergency Driving Stop System (EDSS)
Proactive Driving Assist (PDA)
Predictive Efficient Drive
Electronically Controlled Braking-regeneration
Trailer Sway Control
Child safety door lock
i-Size attachment, outer rear seats
Seatbelt pre-tensioners, front seats
Seatbelt pre-tensioners, outer rear seats
Front centre airbag

Styling

Make a statement with elegant design elements and eye-catching details to make your vehicle stand out from the crowd.

Styling
Chrome bumper and grille garnish
Rear bumper with hidden exhaust
Auto Headlights
LED Daytime running lights (DRL)
LED Rear combination lights
3-flash lane change indicators
Door mirrors, heated
Door mirrors, electrically auto-folding
Door mirrors, electrically adjustable
Intelligent Front and Rear Parking Sensors
Acoustic glass, windscreen
Rear fog light, LED
without special edition package
Resin moulding, wheel arches
Towing capability, 750kg
Intermittent windscreen wipers with time adjustment
Black door belt moulding
Ultra Violet (UV) and heat insulating tinted glass
Headlights, single LED
Rear wheel brake - 15" discs
Manual-levelling headlights
Chrome plated rear badge, LBX
Rear quarter panel, Piano Black
LED front indicators
Black resin rocker panel

Comfort

Sit back and relax in a car so comfortable that it feels like home – from ample space to stretch your legs, to heating that keeps you warm when it's cold outside.

Comfort
Tailgate, electric lift and close
Auto door locking
Electrically operated windows with one-touch control
Smart keyless Entry
LED Glovebox light
Illuminated entry system
Front cup holders
Automatic air recirculation control
Dual Zone Climate Control
Storage box, front centre armrest
2-way manually adjustable front headrests
2-way manually adjustable rear headrests
12V socket, boot
Luggage room light, LED
12V socket, front
Manually folding rear seat backrest, 60/40 split
Tyre repair kit
Tailgate, manually operated
Rear-view mirror, manual day/night
Smart start system
Remote climate control
Humidity sensor for climate control
Door panel finish, fabric
Push start button
6-way manually adjustable driver seat
E-latch
Steering column, manually multi-adjustable
3-spoke, Tahara trimmed steering wheel
Luggage cover board, manually folding
Tahara trimmed gearshift knob
4-way manually adjustable front passenger seat
Front centre console, Gloss Black
Black seat belts
Steering wheel and gearshift knob colour Black
Standard coloured stitching
Resin scuff plates with LEXUS inscription, front doors
Door inlays, Gloss Black

Multimedia

Experience an intuitive multimedia system that seamlessly delivers real-time information, making it easier than ever for you to focus on the road ahead.

Multimedia
Digital speedometer
Trip meter
Digital Audio Broadcasting (DAB) radio
Steering wheel mounted controls, audio / display / phone / voice / DRCC / LTA
Bluetooth® Connectivity
Parking assist monitor with on-screen guides
Antenna, shark fin design
Emergency Response System (eCall)
7" colour multi-information display
9.8" Touchscreen Display
Wireless Apple CarPlay ® and Wired Android Auto®
Lexus Link Connect
Lexus Link Cloud-based Navigation
USB port (Type-C), front centre console
6-speaker premium audio system
USB charging port (Type-C), front centre console

Protection

The world places a lot of demand on your car, from chips and paint scratches to everyday weathering. Take care of your vehicle with a protection package.

Protection
Alarm
Immobiliser
Tilt sensor
Intrusion sensor
Double door lock
Wireless door lock
Glass breaking sensor
