Configure your perfect car, from alloy to accessories
Return to configuration
Back to model page

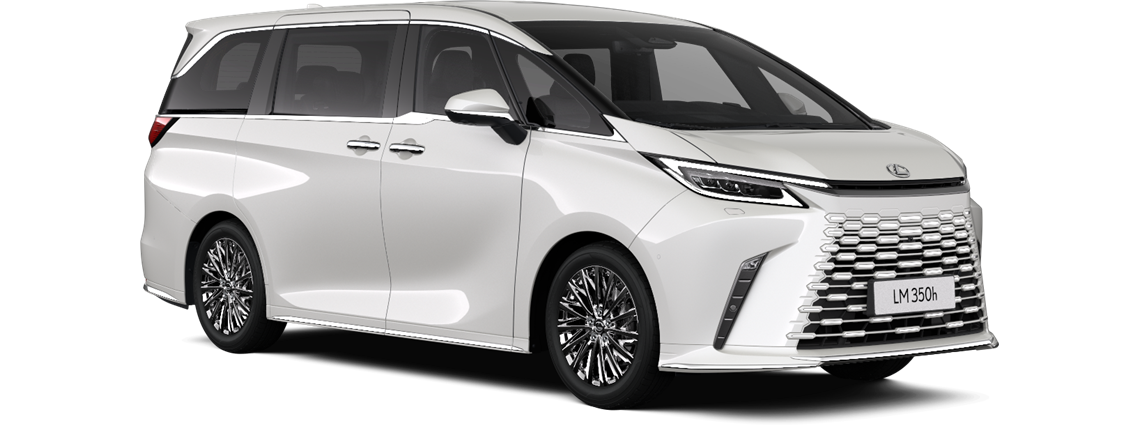

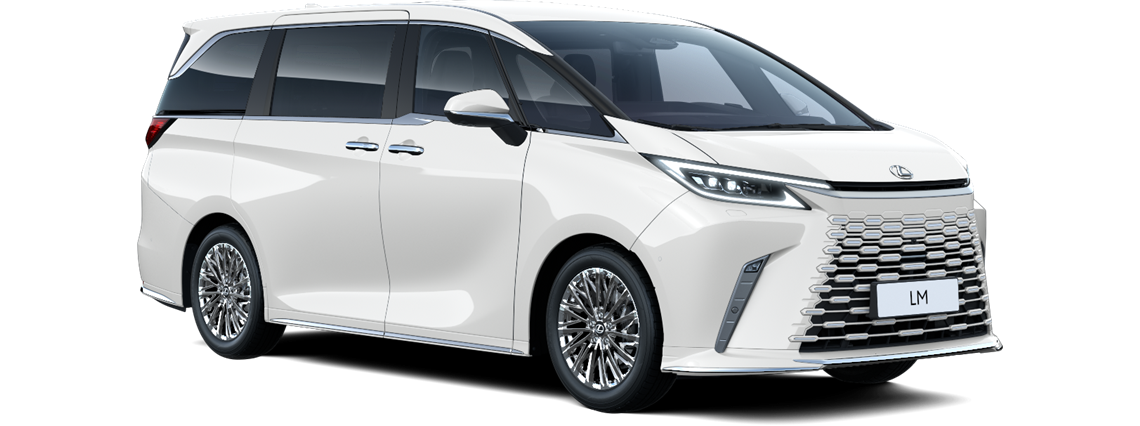

Configure your LM 350h AWD

Engine

Hybrid

2.5 Petrol Hybrid (296hp), Continuously Variable Transmission

CO2 Combined WLTP (g/km)

162 g/km

Fuel Economy mpg

38.1 - 39.2 mpg

Fuel Economy l/100km

7.2 - 7.4 l/100km

From £97,595

2.5 Petrol Hybrid (296hp)

Hybrid

2.5 Petrol Hybrid (296hp), Continuously Variable Transmission

Valve mechanism16-valve DOHC, Chain Drive (With Dual VVT-i)
Compression ratio14:1
Maximum power (DIN hp@rpm)/6000 DIN hp@rpm
Maximum power (kW@rpm)140/6000 kW@rpm
Maximum torque239/4300-4500 Nm@rpm
Figures are provided for comparability purposes; only compare fuel consumption and CO2 figures with other cars tested to the same technical procedures. These figures may not reflect real life driving results. All vehicles are certified according to the World Harmonised Light Vehicle Test Procedure (WLTP). Please visit the Vehicle Certification Agency website for the latest information. Choice of options and accessories fitted (pre-registration) may affect the official CO2 figures, car tax and 'on the road' price. Find out more about WLTP or contact your local Lexus Centre.
Skip to spin container

Colour

Skip to spin container

Wheels

19" forged alloy wheels, multi-spoke design, 225/55 R19 tyres

19" forged alloy wheels, multi-spoke design, 225/55 R19 tyres

Tyre info

Supplier name or trademarkMICHELIN
Commercial name or trade designationPRIMACY SUV+ DT
Tyre type identifier1611835
Tyre size designation225/55R19
Load-capacity index103
Speed category symbolH
Fuel efficiency classB
Wet grip classC
External rolling noise classB
External rolling noise value69
Severe snow tyreNo
Ice tyreNo
Date of start1/05/2023
Load versionXL
Skip to spin container

Upholstery

Skip to spin container
From £97,595
Summary
Get a quote

Overview

Starting price
From £97,595

  • Engine

    Hybrid

    4X4
    2.5 Petrol Hybrid (296hp), Continuously Variable Transmission

  • Colour

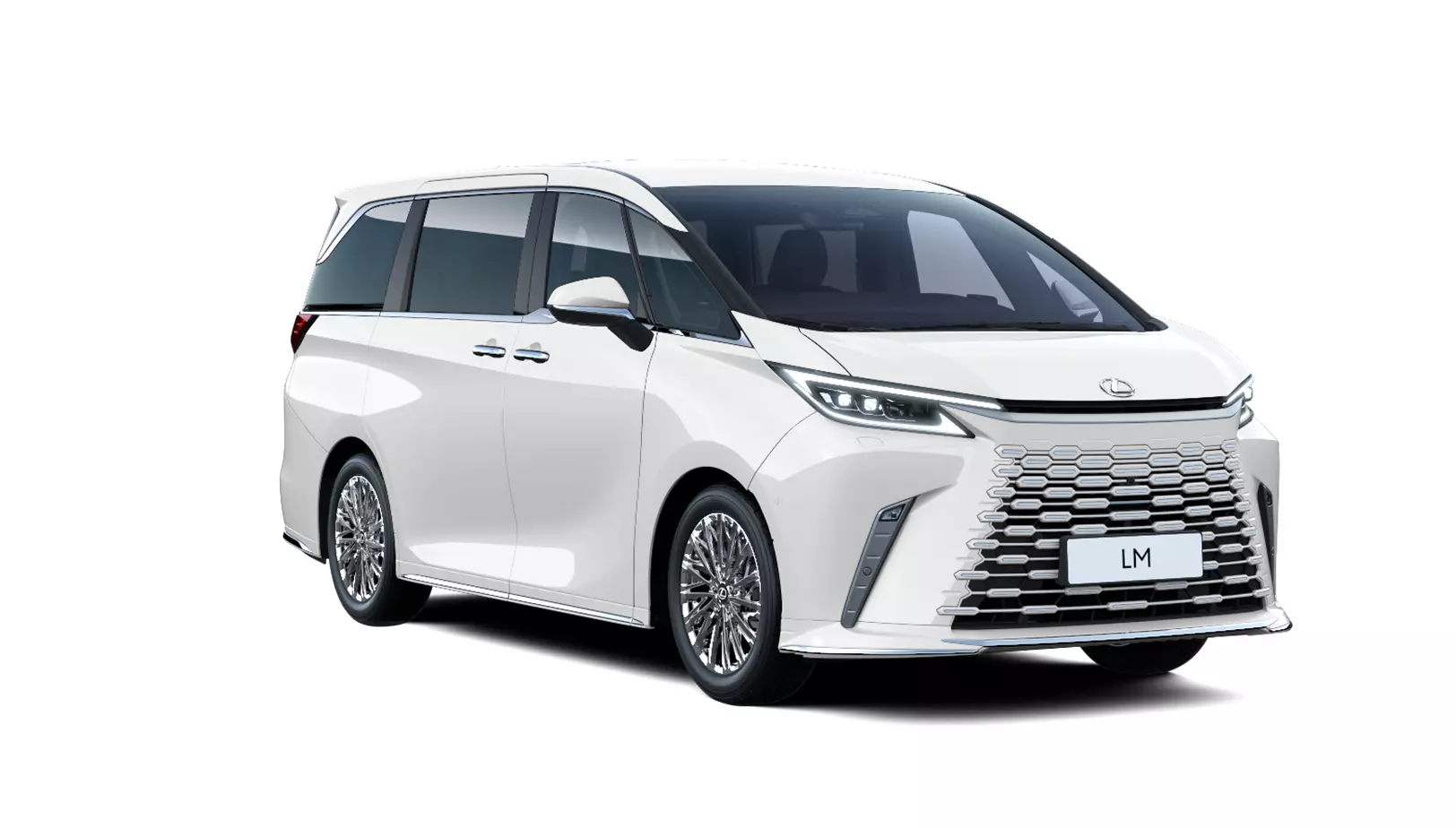

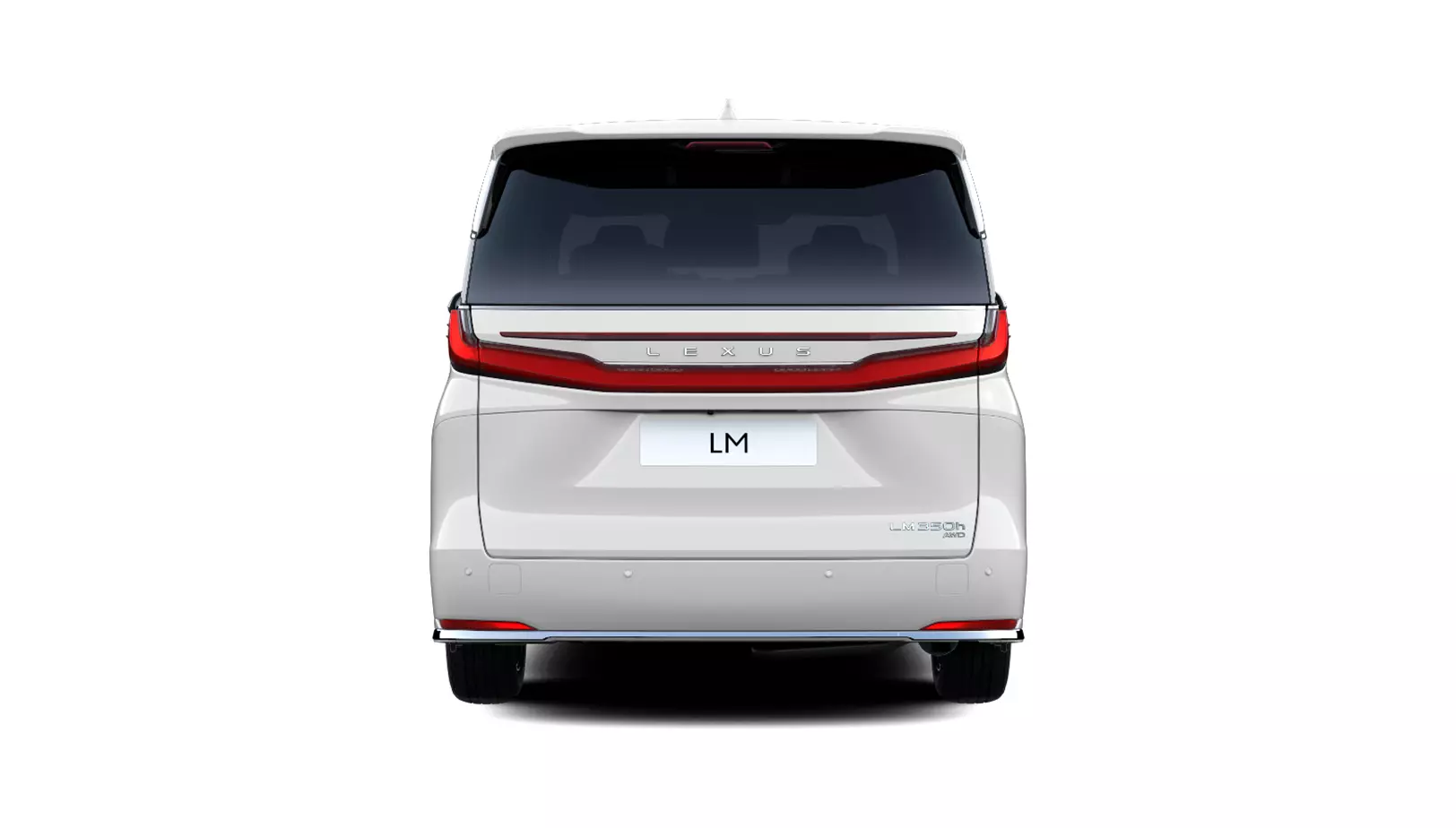

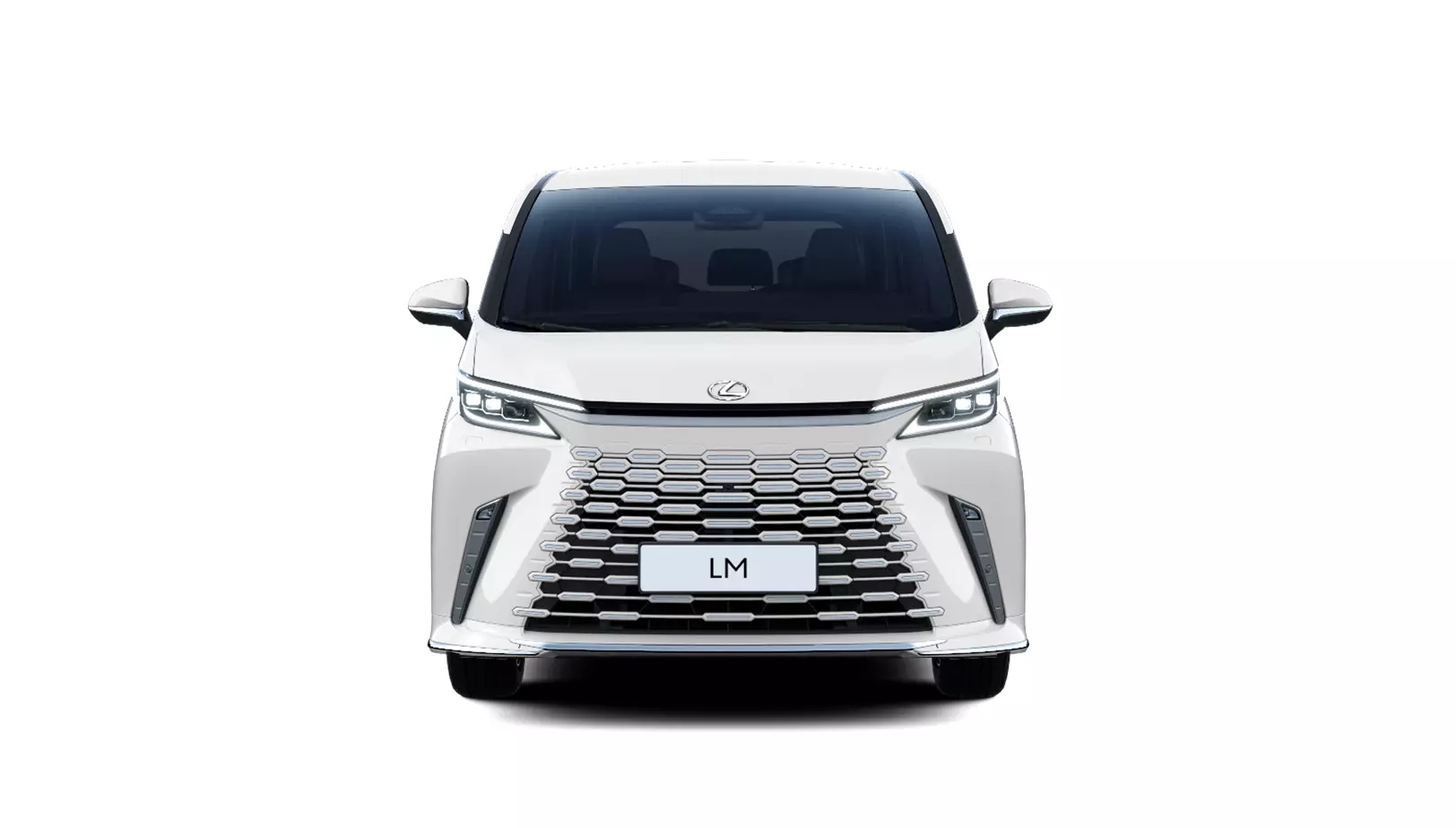

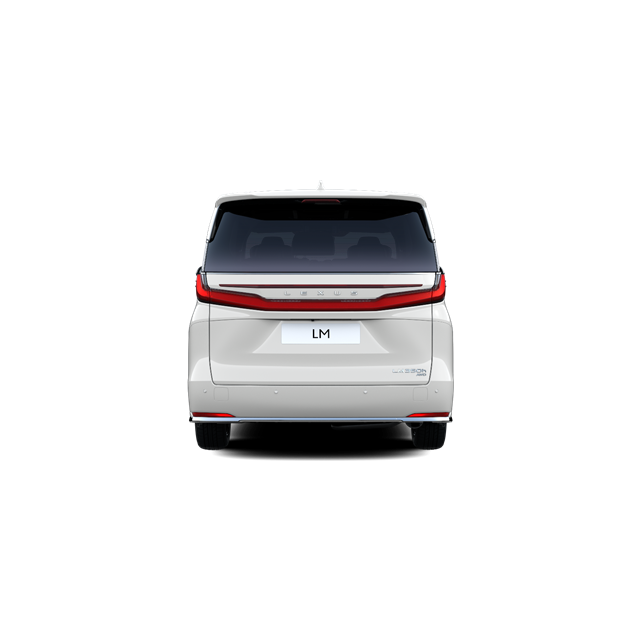

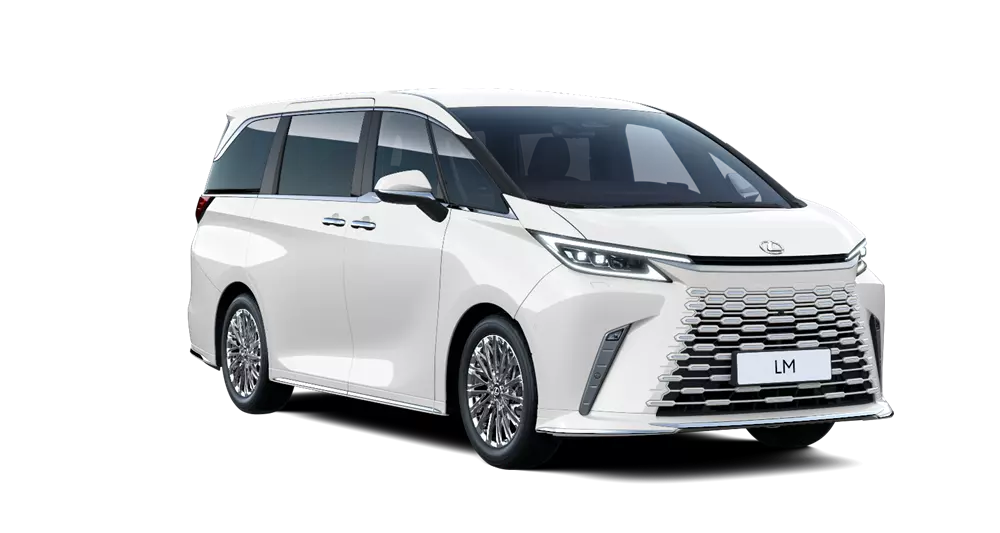

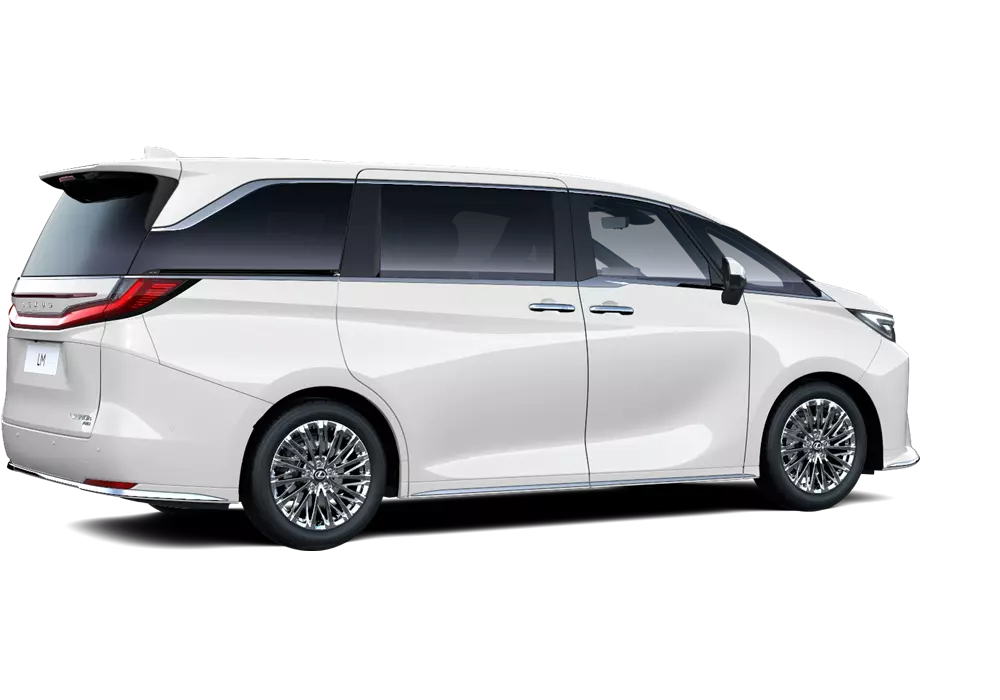

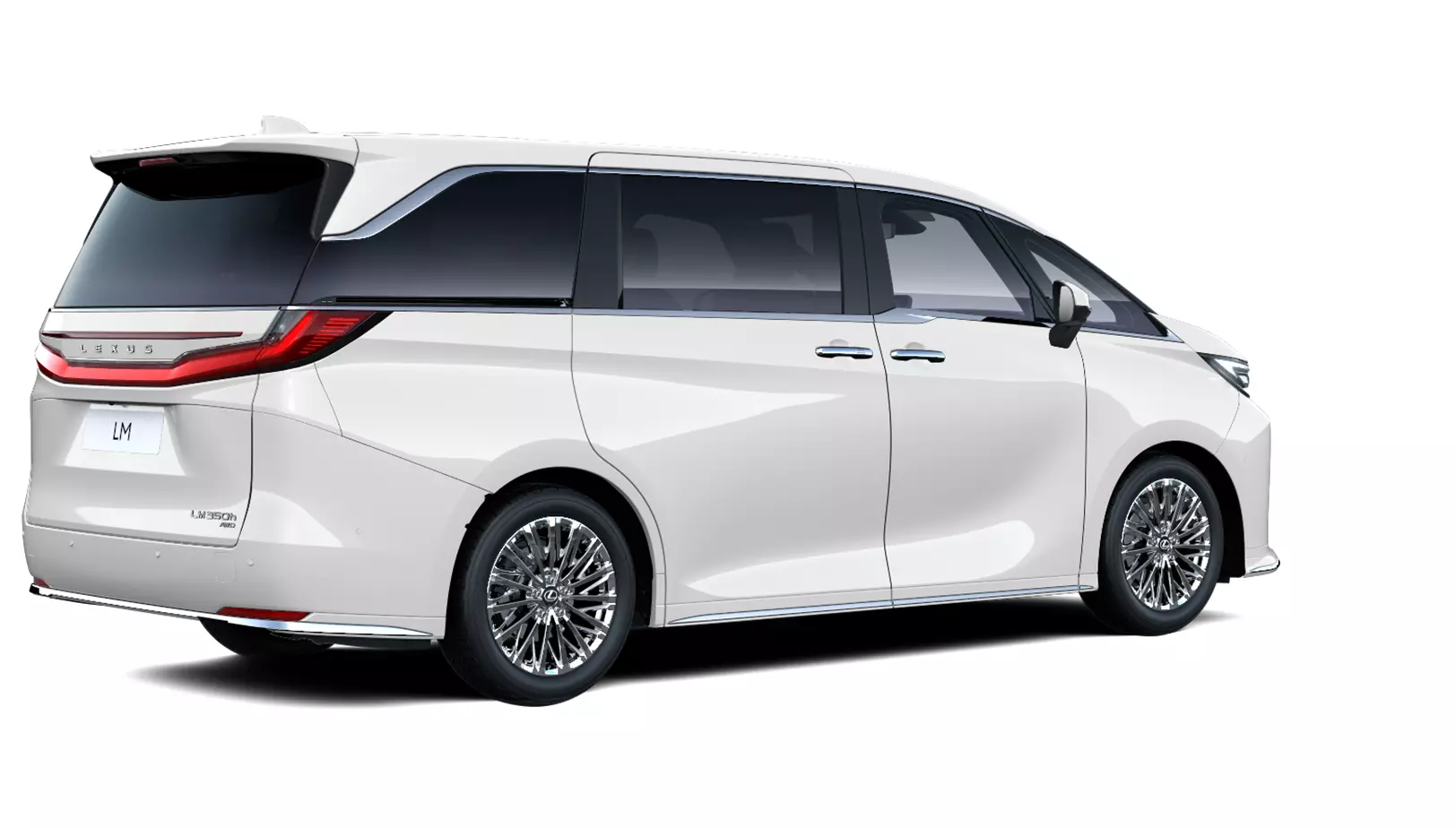

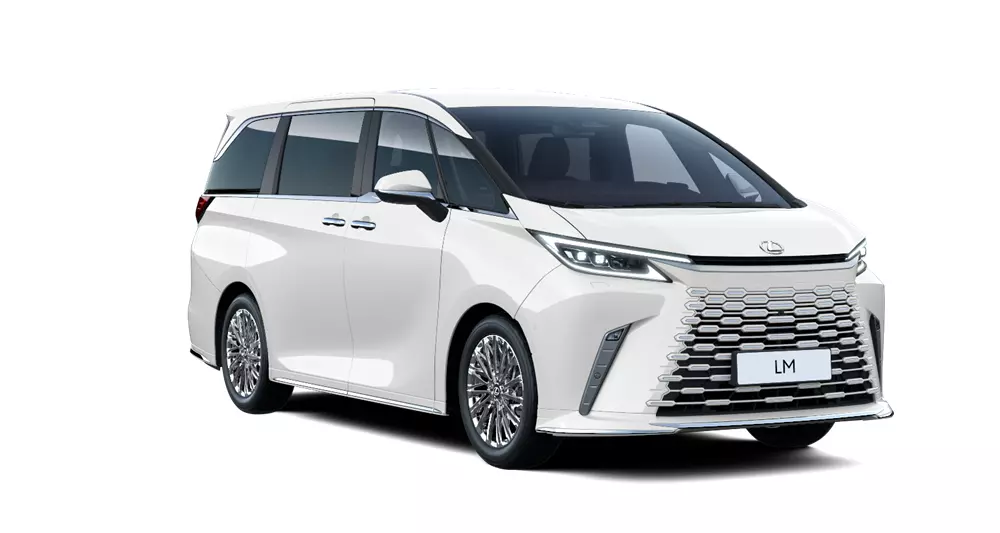

    • Sonic White (085)

      Metallic

      Included

  • Wheels

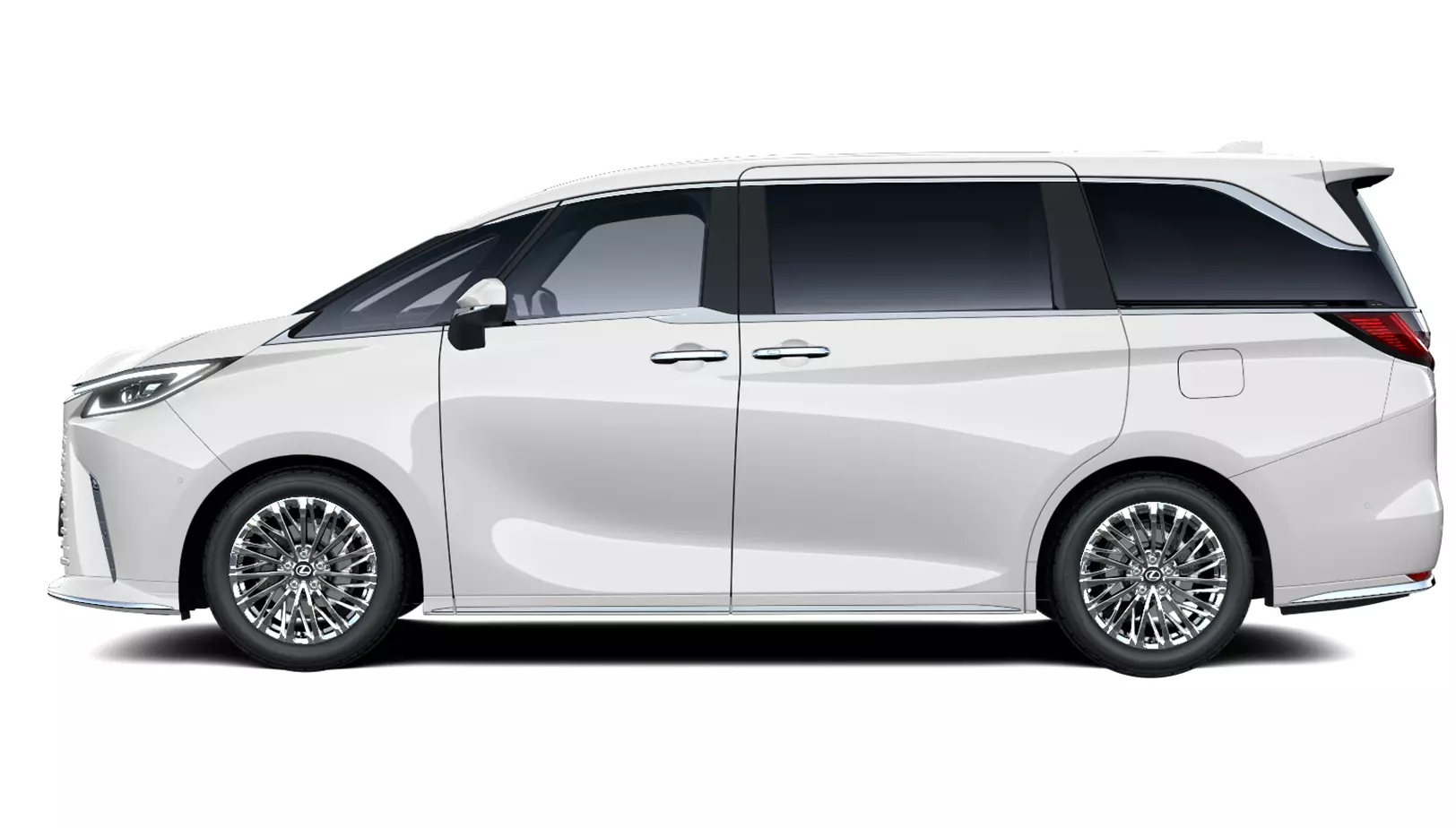

    • 19" forged alloy wheels, multi-spoke design, 225/55 R19 tyres

      Included

  • Upholstery

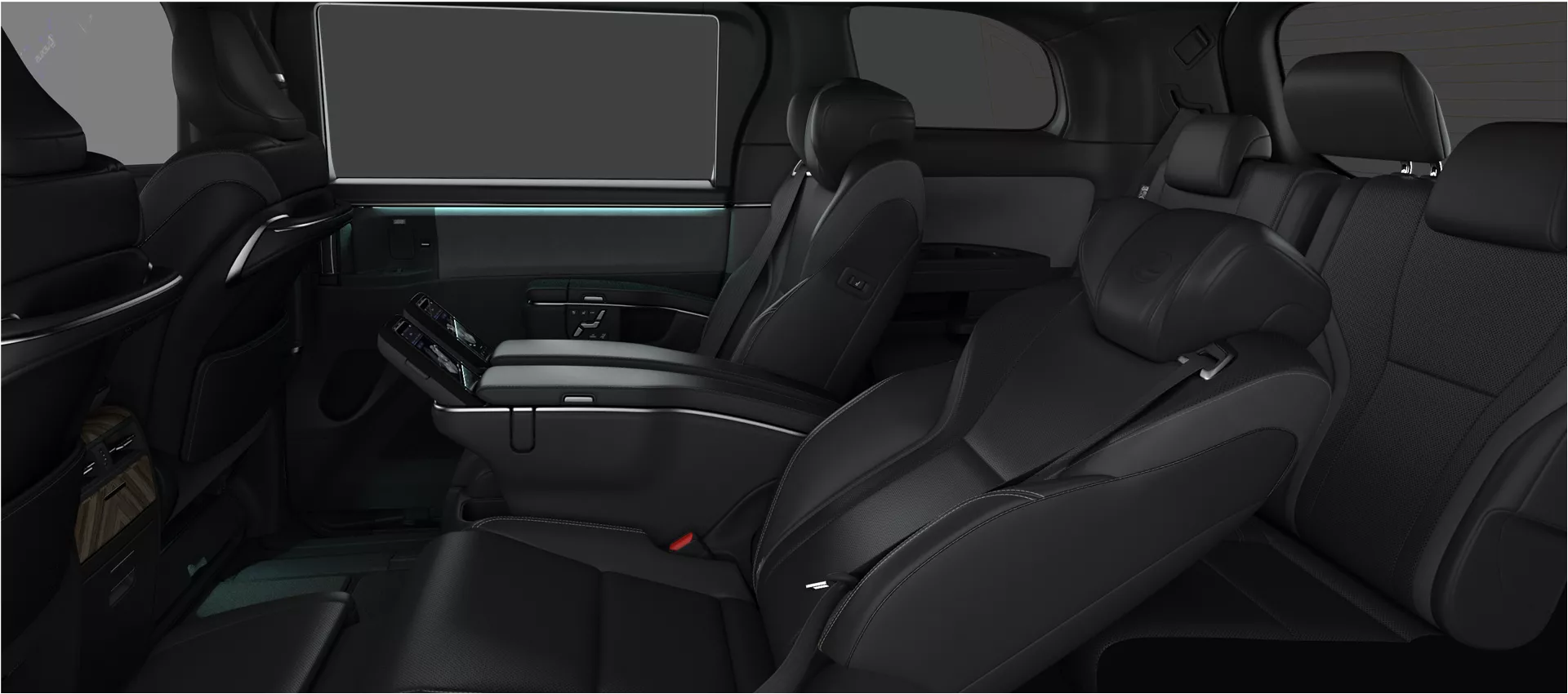

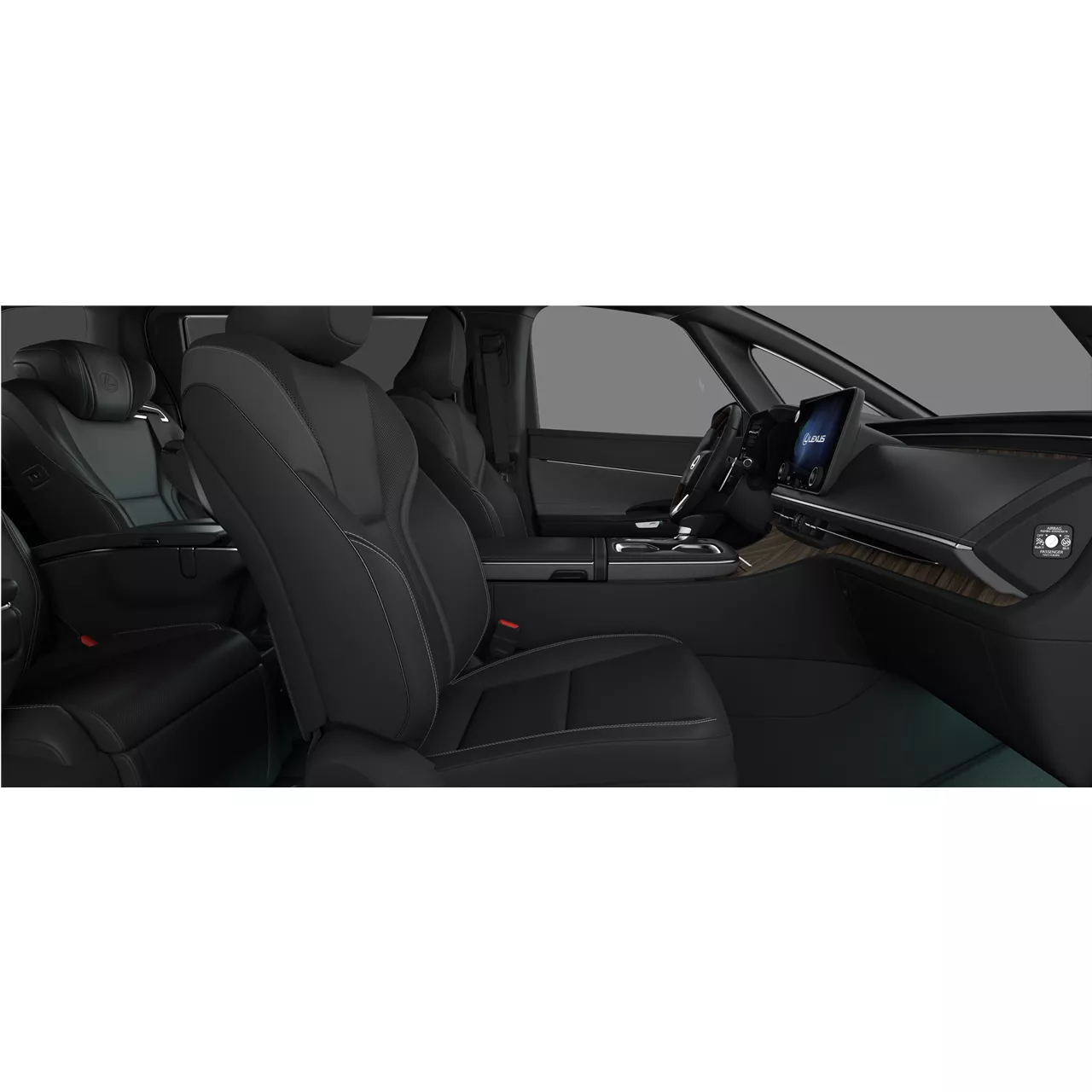

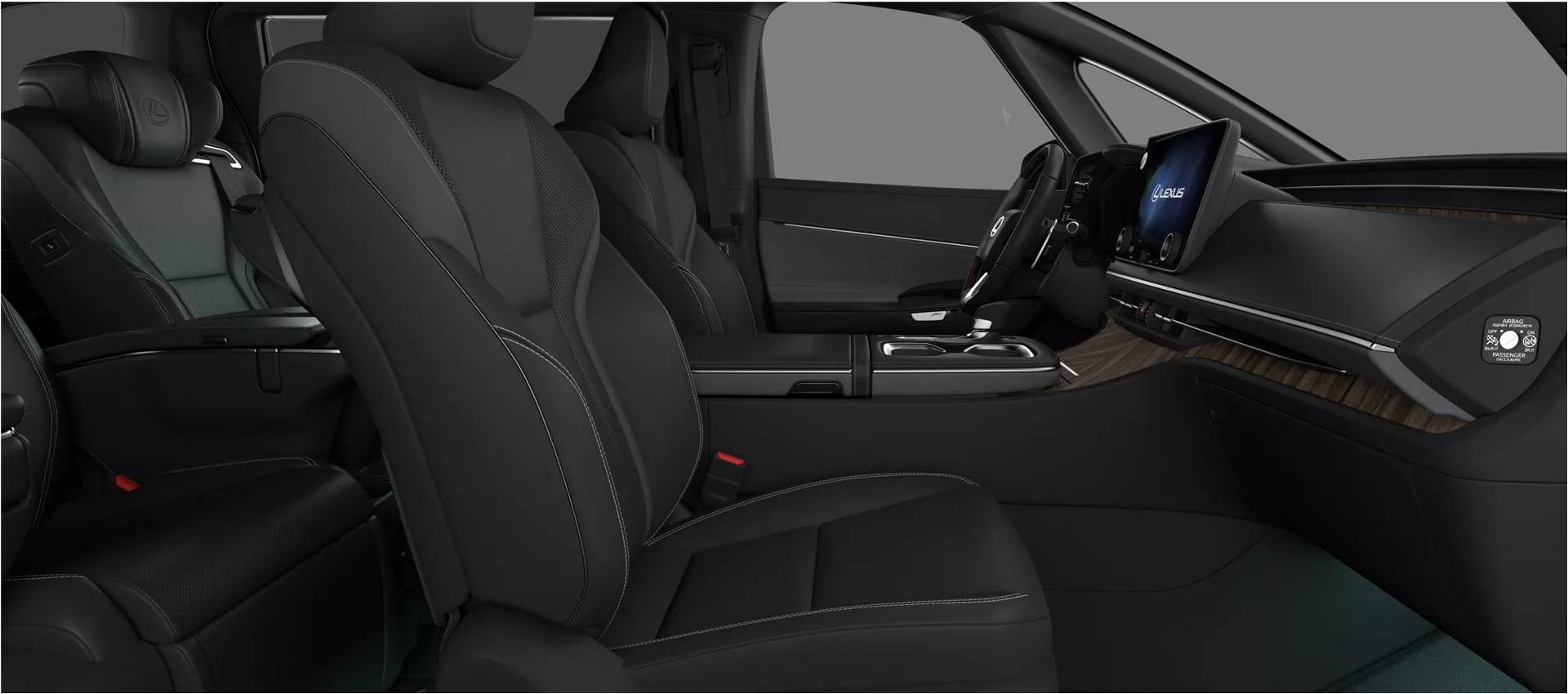

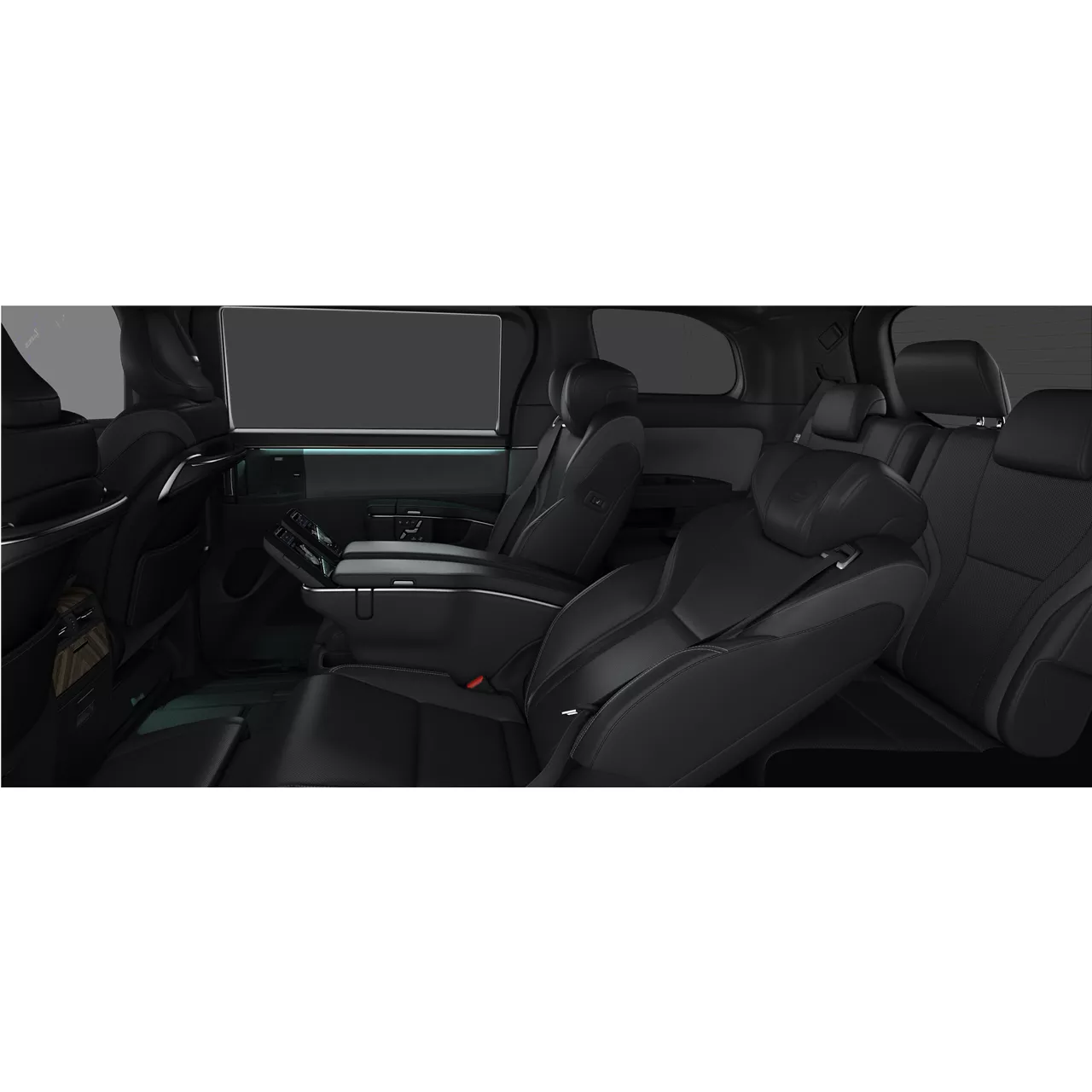

    • Black L-Aniline Leather (LA21)

      Included

Other costs

Tax and Costs

Includes 1st Year VED based on CO2 emissions of 162 g/km

£1,360.00

  • Part Exchange

    Use the value of your current vehicle towards the cost of your new Lexus. For an instant quote, all we need is your registration, mileage and a few details about its condition.

Specifications

Technical specifications

ENGINE

  • Valve mechanism

    16-valve DOHC, Chain Drive (With Dual VVT-i)

  • Compression ratio

    14:1

  • Maximum power (DIN hp@rpm)

    /6000 DIN hp@rpm

  • Maximum power (kW@rpm)

    140/6000 kW@rpm

  • Conventional engine output (kW@rpm)

    140/6000 kW@rpm

  • Hybrid combined output (kW)

    184 kW

  • Maximum torque

    239/4300-4500 Nm@rpm

  • Engine speed for maximum output

    239

  • Maximum torque (Nm@rpm)

    239

  • Cylinders & configuration

    4-cylinder,in-line

  • Bore (mm)

    87.5 mm

  • Maximum output (kW@rpm)

    140 kW

TRANSMISSION

  • Drive

    4WD

  • Final drive ratio

    3.638

ELECTRIC GENERATOR

  • Generator type

    Nickel-metal-Hydride

  • Maximum voltage (V)

    259.2

Charging

  • Battery type

    Nickel-metal-Hydride

  • Nominal Voltage

    259.2 V

  • Number of modules

    9

  • Hybrid vehicle battery: Capacity Ah (hr)

    5.0 Ah

  • Battery capacity (Ah)

    5.0 Ah

EMISSIONS

  • CO2

    162 - 167 g/km

PERFORMANCE

  • Acceleration 0-62 mph (s)

    8.7 seconds

  • Drag coefficient

    0.335

FRONT ELECTRIC MOTOR

  • Type (front)

    permanent magnet synchronous motor

  • Electric Front Motor: Type

    permanent magnet synchronous motor

  • Maximum power (front) (kW)

    134 kW

  • Maximum torque (front)

    270 Nm

  • Maximum torque (Nm)

    270 Nm

SUSPENSION

  • Suspension Front

    Macpherson Strut

  • Suspension Rear

    Double Wishbone

NVH Performance

  • Sound Level (Drive by)

    67.0 dB(A)

TYRES AND WHEELS

  • Minimum fuel efficiency class

    B

  • Minimum rolling noise level

    69 dB(A)

  • Minimum wet grip class

    C

WEIGHTS

  • Gross Vehicle Weight Front (kg)

    2880 kg

  • Kerb weight (min.-max.) (kg)

    2355 kg

CAPACITIES

  • Fuel tank capacity (l)

    60 l

  • Towing capacity with brakes (kg)

    0 kg

  • Towing capacity without brakes (kg)

    0 kg

DIMENSIONS

  • Width (mm)

    1890 mm

  • Length (mm)

    5130 mm

  • Wheelbase (mm)

    3000 mm

  • Height (mm)

    1940 mm

  • Front tread (mm)

    1615 mm

  • Rear tread (mm)

    1620 mm

STEERING

  • Type

    eletric

  • Minimum Turning Radius - Tyre (m)

    5.9 m

  • Turns (lock to lock)

    2.83

BRAKES

  • Brakes Front

    Ventilated Disc 2-Cylinder

  • Front disc size (mm)

    328

  • Brakes Rear

    Ventilated Disc 1-Cylinder

  • Rear disc size (mm)

    317

TOTAL SYSTEM OUTPUT

  • Maximum Power (kW)

    134

INTERIOR

ACTIVE SAFETY & DRIVING DYNAMICS

  • Lexus Safety System +

  • Pre-Collision System (PCS)

  • Front pedestrian detection

  • Dynamic Radar Cruise Control (DRCC), all-speed

  • Traction Control (TRC)

  • EV (Electric Vehicle) mode

  • Electric Power Steering (EPS)

  • Stabilisers

  • Adaptive Variable Suspension (AVS)

  • Electric Parking Brake (EPB)

  • Electronic Brake-force Distribution (EBD)

  • Electronically Controlled Braking-Regeneration (ECB-R)

  • Anti-lock Braking System (ABS)

  • Hill-start Assist Control (HAC)

  • Vehicle Stability Control (VSC)

  • Adaptive High-beam System (AHS)

  • Active brake lights

  • Automatic Rear Flashing Hazard Lights (ARFHL)

  • Tyre Pressure Warning System (TPWS) with Auto location

  • Lane Tracing Assist (LTA)

  • Blind Spot Monitor (BSM)

  • Rear Cross Traffic Alert and Braking (RCTAB)

  • Road Sign Assist (RSA)

  • Rear pedestrian detection

  • Acoustic Vehicle Alerting System (AVAS)

  • Intersection Turning Assist (ITA)

  • Emergency Steering Assist (ESA)

  • Front cyclist detection

  • Safe Exit Assist (SEA)

  • Lane Change Assist (LCA)

  • Front motorcyclist detection, daytime only

  • Advanced Park with Remote Control

  • Driver Monitoring System

  • Emergency Driving Stop System (EDSS)

  • Proactive Driving Assist (PDA)

  • Drive Mode Select, Eco / Rear Comfort / Normal / Custom / Sport

PASSIVE SAFETY

  • Child safety door lock

  • Seatbelt pre-tensioners, front seats

  • Seatbelt pre-tensioners, rear seats

  • i-Size attachment, outer rear seats

  • ISOFIX attachment, outer rear seats

  • Curtain shield airbags

  • Side airbags, driver and front passenger

  • Airbag cut-off switch, front passenger

  • Audible and visual seatbelts reminder, front seats

  • Audible and visual seatbelts reminder, rear seats

  • Dual-stage airbags, driver and front passenger

INTERIOR COMFORT & CONVENIENCE

  • Cold area package

  • Leather trimmed gearshift knob

  • Paddle-shift controls

  • Steering column, electrically multi-adjustable

  • Heated steering wheel

  • 3-spoke, leather and wood trimmed steering wheel

  • Temporary spare wheel

  • Soft closing automatic doors

  • Auto door locking

  • Tailgate, height memory function

  • Tailgate, electric lift and close

  • Glovebox illumination, LED

  • Door courtesy lights, LED

  • Luggage room lights, LED

  • Rear-view mirror, electro chromatic (auto-dimming)

  • Rear side window sunshades, electric

  • Rear quarter window sunshades, electric

  • Resin scuff plates, front doors

  • Resin scuff plates, rear doors

  • Cup holders, front

  • Cup holders, rear

  • Cup holders, third row

  • Storage box, front centre armrest

  • Automatic air recirculation control

  • Lexus Climate Concierge

  • Remote climate control

  • S-Flow technology for climate control

  • Electronic climate control, 4-zone

  • Shoulder switch for front passenger seat adjustment

  • Rear captain seats

  • Side folding third row seats

  • Manually folding third row seats, 50/50 split

  • Semi-aniline leather upholstery

  • L-aniline leather upholstery, rear seats

  • Semi-aniline leather upholstery, third row seats

  • Fixed rear centre console with centre armrest

  • Rear relaxation seat on passenger's side

  • 4-way lumbar support, driver seat

  • 2-way lumbar support, front passenger seat

  • Easy entry and exit function, driver seat retracts/returns

  • Easy entry and exit function, steering wheel retracts/returns

  • Heated front seats

  • Heated rear seats

  • Ventilated front seats

  • Ventilated rear seats

  • 8-way electrically adjustable driver seat

  • 4-way electrically adjustable front passenger seat

  • 12V socket, front

  • 220V socket, luggage compartment

  • Driving position memory (seat, steering wheel, outer mirrors) - 3 user profiles

  • Push start button

  • Smart entry and start system

  • Clean air filter with pollen / PM removal and deodoriser

  • L emblem embossed on front headrests

  • 2-way manually adjustable headrest, driver

  • 2-way manually adjustable headrest, front passenger

  • Multi-colour ambient lighting

  • Rear seat reading lights, LED

  • Electrically reclining rear seats

  • Electrically sliding rear seats, independent captain seats

  • Door panel finish, suede

  • Smart digital key

  • Smart key, Ultra-Wideband (UWB)

  • Dark interior package

  • Glass moon roof

  • Electrically operated sunroof blinds

  • e-Latch door lock system, front doors

  • Instrument panel, Tahara and suede fabric

  • Folding table in rear seat armrests

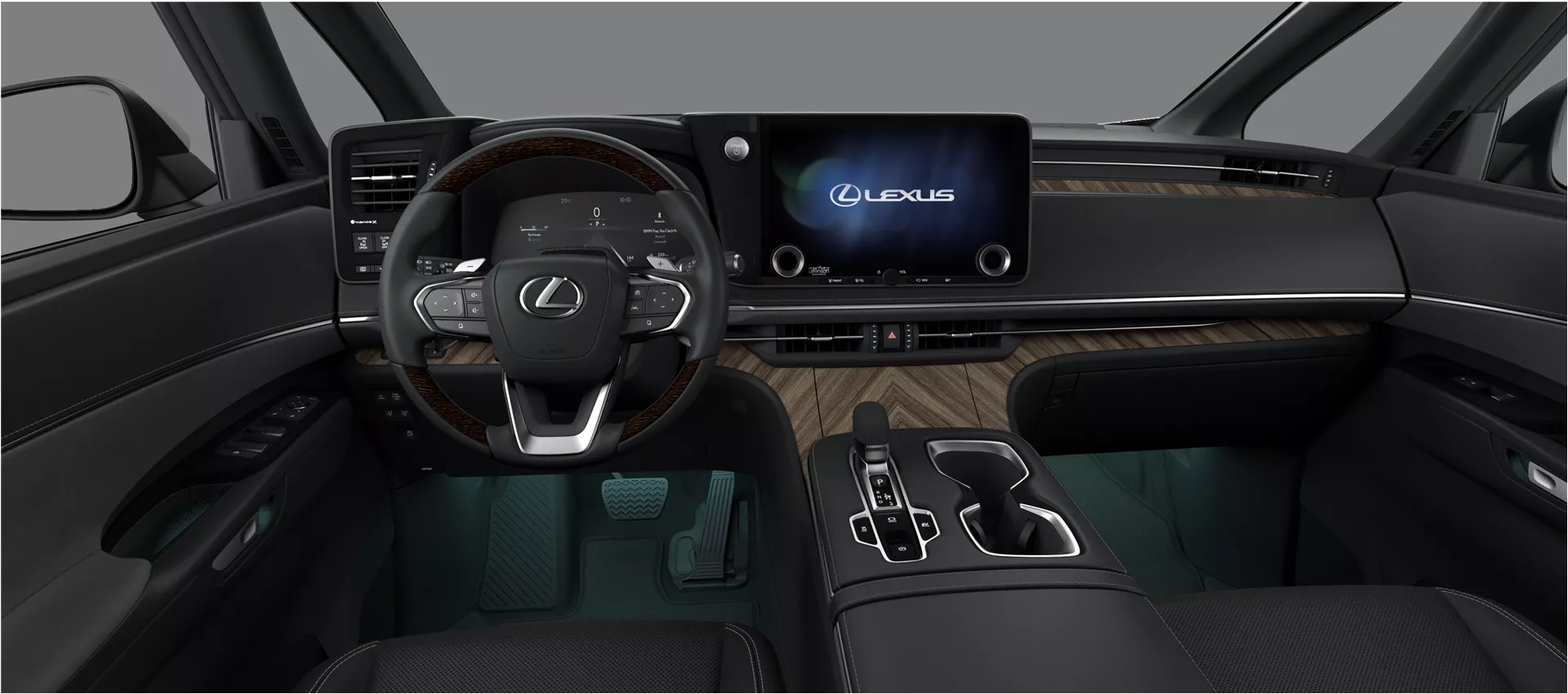

  • Instrument panel inlay, Yabane Herringbone Woodgrain

  • Front centre console, Yabane Herringbone Woodgrain

  • Electronic climate control with nanoe™ X technology

  • Manually sliding third row seats, 50/50 split

  • Shoulder switches for rear passenger seat adjustment

  • L emblem embossed on rear headrests

  • Tahara and suede fabric, front centre armrest

  • Rear relaxation seat on driver's side

  • Rear passenger seat position memory - 2 user profiles

  • 10-way electrically adjustable rear seat on driver's side

  • 10-way electrically adjustable rear seat on passenger's side

  • Rear massage seats

  • Heated ottoman, rear seats

  • Heated armrests, rear seats

  • Manually reclining third row seats, 50/50 split

  • 2-way manually adjustable rear headrests

AUDIO, COMMUNICATION & INFORMATION

  • Active Noise Control (ANC)

  • Tachometer/Hybrid system indicator

  • Trip meter

  • Eco driving indicator

  • Head-Up Display (HUD)

  • Rear Seat Entertainment system (RSE)

  • Antenna, shark fin design

  • Digital Audio Broadcasting (DAB) radio

  • HDMI port, rear centre console

  • Bluetooth® mobile phone and audio connectivity

  • Panoramic View Monitor (PVM)

  • Emergency Response System (eCall)

  • Steering wheel mounted customizable touch controls

  • 14" touchscreen display

  • Smartphone integration (Wireless Apple CarPlay®, Android Auto™)

  • Lexus Link Pro Embedded Hybrid Navigation

  • Lexus Link Pro

  • 2 USB charging ports (Type-C), front centre console

  • Digital speedometer, high-definition display

  • 220V socket, rear

  • USB port (Type-C), front centre console

  • 2 USB charging ports (Type-C), 3rd row

  • 2 USB charging ports (Type-C), rear seats

  • 21-speaker Mark Levinson® Reference 3D Surround Sound System

  • HDMI port, front centre console

  • 14" rear entertainment display, ceiling mounted

  • Wireless smartphone charger, front centre console

SECURITY

  • Anti-theft system - siren

  • Anti-theft system - immobiliser

  • Anti-theft system - inclination sensor

  • Anti-theft system - intrusion sensor

  • Double door lock

  • Wireless door lock

  • Anti-theft system - Ultra-Wideband (UWB)

EXTERIOR

EXTERIOR

  • Black front brake callipers with Lexus logo

  • Front wheel brake - 17" discs

  • Black rear brake callipers

  • Rear wheel brake - 17" discs

  • Acoustic glass, windscreen, front and rear side glass

  • Infrared Ray (IR) insulating glass, windscreen, front and rear side glass

  • Privacy glass

  • Water-repellent glass, windscreen and front side glass

  • Top shade, windscreen

  • Rear bumper with hidden exhaust

  • Body-coloured roof spoiler

  • Chrome door belt moulding

  • Chrome bumper and grille garnish

  • Puddle lights

  • Rain sensing windscreen wipers

  • Headlights, triple LED

  • Auto-levelling headlights, dynamic

  • Headlight cleaners

  • Cornering lights, LED

  • Front indicator lights, LED

  • Dusk sensor

  • Daytime running lights (DRL), LED

  • Rear combination lights, LED

  • Rear fog lights, LED

  • Side indicator lights, integrated in door mirror

  • Door mirrors, electro chromatic (auto-dimming)

  • Door mirrors, heated

  • Door mirrors, electrically auto-folding

  • Door mirrors, electrically adjustable

  • Door mirrors, aspherical mirror

  • Intelligent parking assist sensors, front and rear

  • Door mirrors, reverse tilt function

  • Ultra Violet (UV) and heat insulating tinted glass

  • Rear bumper, Chrome ornament

  • Body protection film

  • Body-coloured rocker panel with Chrome ornament

  • Body-coloured, unified grille

  • Chrome moulding, side windows upper

  • Chrome plated rear badge, Lexus

  • Black door handles with Chrome inlay

  • Rear sliding doors, electric

  • Front bumper, Chrome ornament

  • Chrome plated rear badge, LM 350h

FUEL CONSUMPTION

  • Fuel Economy l/100km

    7.2 - 7.4 l/100km

  • Fuel Economy mpg

    38.1 - 39.2 mpg

  • Total

    From £97,595

Get a quote
Engine
Colour
Wheels
Upholstery
Charging at home
Skip to spin container

POST https://dxp-webcarconfig.lexus-europe.com/v1/car-config/gb/en?path=configure/4aa28d74-388f-49f2-9fd1-2d7366107901 with body {"reduxState":{"carConfigSettings":{"loadedStepUrls":{"highlights":"https://www.lexus.co.uk/new-cars/lm/highlights","configure":"https://www.lexus.co.uk/new-cars/lm/build","specs":"https://www.lexus.co.uk/new-cars/lm/specifications"}}}}
