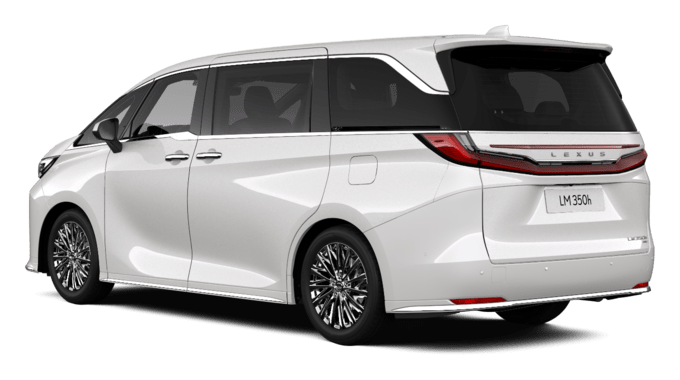

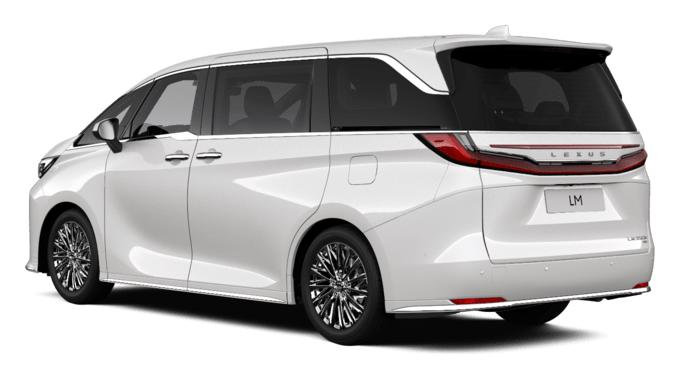

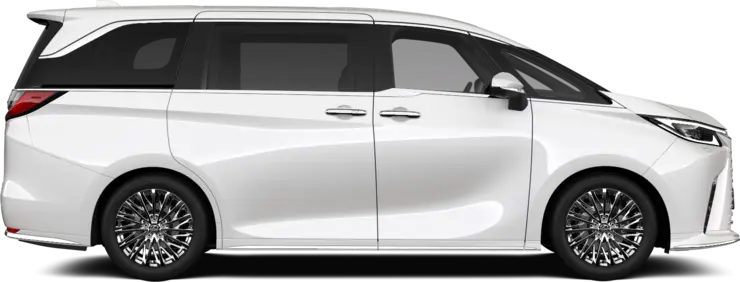

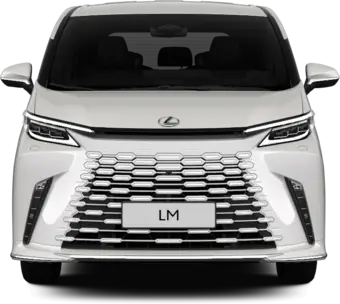

LM LM350h AWD

SUV

Lexus LM
  • Advanced Park with Remote Control
  • Glass moon roof
  • Multi-colour ambient lighting
4X4
2.5 Petrol Hybrid (245hp)

POST https://dxp-webcarconfig.lexus-europe.com/v1/compare-v2/gb/en

  • Fuel tank capacity (l)
    60 l
  • Width (mm)
    1890 mm
  • Length (mm)
    5130 mm
  • Wheelbase (mm)
    3000 mm
  • Height (mm)
    1890 mm
  • Front tread (mm)
    1615 mm
  • Rear tread (mm)
    1635 mm

  • Valve mechanism
    16-valve DOHC, Chain Drive (With Dual VVT-i)
  • Compression ratio
    14:1
  • Maximum power (DIN hp@rpm)
    /6000 DIN hp@rpm
  • Maximum power (kW@rpm)
    140/6000 kW@rpm
  • Conventional engine output (kW@rpm)
    140/6000 kW@rpm
  • Hybrid combined output (kW)
    184 kW
  • Maximum torque
    239/4300-4500 Nm@rpm
  • Engine speed for maximum output
    239
  • Maximum torque (Nm@rpm)
    239
  • Cylinders & configuration
    4-cylinder,in-line
  • Bore (mm)
    87.5 mm
  • Maximum output (kW@rpm)
    140 kW
  • Drive
    4wd
  • Final drive ratio
    3.638
  • Generator type
    Nickel-metal-Hydride
  • Maximum voltage (V)
    259.2
  • Battery type
    Nickel-metal-Hydride
  • Nominal Voltage
    259.2 v
  • Number of modules
    9
  • CO2 Combined WLTP
    163 g/km
  • CO2 Combined WLTP - Max
    167 g/km
  • Acceleration 0-62 mph (s)
    8.7 seconds
  • Drag coefficient
    0.335
  • Fuel Combined WLTP (mpg)
    38.1 mpg
  • Fuel Combined WLTP - Max (mpg)
    39.2 mpg
  • Type (front)
    permanent magnet synchronous motor
  • Electric Front Motor: Type
    permanent magnet synchronous motor
  • Maximum power (front) (kW)
    134 kW
  • Maximum torque (front)
    270 Nm
  • Maximum torque (Nm)
    270
  • Suspension Front
    Macpherson Strut
  • Suspension Rear
    Double Wishbone
  • Kerb weight (min.-max.) (kg)
    2355 kg
  • Type
    eletric
  • Minimum Turning Radius - Tyre (m)
    5.9 m
  • Turns (lock to lock)
    2.83
  • Brakes Front
    Ventilated Disc 2-Cylinder
  • Front disc size (mm)
    328
  • Brakes Rear
    Ventilated Disc 1-Cylinder
  • Rear disc size (mm)
    317
  • Maximum Power (kW)
    134

Exterior
  • Black front brake callipers with Lexus logo
  • Front wheel brake - 17" discs
  • Black rear brake callipers
  • Rear wheel brake - 17" discs
  • Acoustic glass, windscreen, front and rear side glass
  • Infrared Ray (IR) insulating glass, windscreen, front and rear side glass
  • Privacy glass
  • Water-repellent glass, windscreen and front side glass
  • Top shade, windscreen
  • Rear bumper with hidden exhaust
  • Body-coloured roof spoiler
  • Chrome door belt moulding
  • Chrome bumper and grille garnish
  • Puddle lights
  • Rain sensing windscreen wipers
  • Headlights, triple LED
  • Auto-levelling headlights, dynamic
  • Headlight cleaners
  • Cornering lights, LED
  • Front indicator lights, LED
  • Dusk sensor
  • Daytime running lights (DRL), LED
  • Rear combination lights, LED
  • Rear fog lights, LED
  • Side indicator lights, integrated in door mirror
  • Door mirrors, electro chromatic (auto-dimming)
  • Door mirrors, heated
  • Door mirrors, electrically auto-folding
  • Door mirrors, electrically adjustable
  • Door mirrors, aspherical mirror
  • Intelligent parking assist sensors, front and rear
  • Door mirrors, reverse tilt function
  • Ultra Violet (UV) and heat insulating tinted glass
  • Rear bumper, Chrome ornament
  • Body protection film
  • Body-coloured rocker panel with Chrome ornament
  • Body-coloured, unified grille
  • Chrome moulding, side windows upper
  • Chrome plated rear badge, Lexus
  • Black door handles with Chrome inlay
  • Rear sliding doors, electric
  • Front bumper, Chrome ornament
  • Chrome plated rear badge, LM 350h
Exterior
  • 19" forged alloy wheels, multi-spoke design, 225/55 R19 tyres

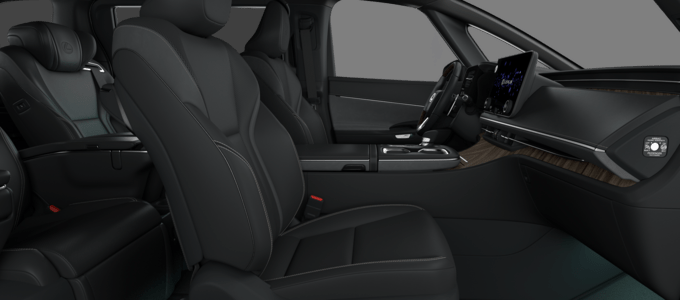

Interior
  • Active Noise Control (ANC)
  • Tachometer/Hybrid system indicator
  • Trip meter
  • Eco driving indicator
  • Head-Up Display (HUD)
  • Rear Seat Entertainment system (RSE)
  • Antenna, shark fin design
  • Digital Audio Broadcasting (DAB) radio
  • HDMI port, rear centre console
  • Bluetooth® mobile phone and audio connectivity
  • Panoramic View Monitor (PVM)
  • Emergency Response System (eCall)
  • Steering wheel mounted customizable touch controls
  • 14" touchscreen display
  • Smartphone integration (Wireless Apple CarPlay®, Android Auto™)
  • Lexus Link Pro Embedded Hybrid Navigation
  • Lexus Link Pro
  • 2 USB charging ports (Type-C), front centre console
  • Digital speedometer, high-definition display
  • 220V socket, rear
  • USB port (Type-C), front centre console
  • 2 USB charging ports (Type-C), 3rd row
  • 2 USB charging ports (Type-C), rear seats
  • 21-speaker Mark Levinson® Reference 3D Surround Sound System
  • HDMI port, front centre console
  • 14" rear entertainment display, ceiling mounted
  • Wireless smartphone charger, front centre console
Interior
  • Lexus Safety System +
  • Pre-Collision System (PCS)
  • Front pedestrian detection
  • Dynamic Radar Cruise Control (DRCC), all-speed
  • Traction Control (TRC)
  • EV (Electric Vehicle) mode
  • Electric Power Steering (EPS)
  • Stabilisers
  • Adaptive Variable Suspension (AVS)
  • Electric Parking Brake (EPB)
  • Electronic Brake-force Distribution (EBD)
  • Electronically Controlled Braking-Regeneration (ECB-R)
  • Anti-lock Braking System (ABS)
  • Hill-start Assist Control (HAC)
  • Vehicle Stability Control (VSC)
  • Adaptive High-beam System (AHS)
  • Active brake lights
  • Automatic Rear Flashing Hazard Lights (ARFHL)
  • Tyre Pressure Warning System (TPWS) with Auto location
  • Lane Tracing Assist (LTA)
  • Blind Spot Monitor (BSM)
  • Rear Cross Traffic Alert and Braking (RCTAB)
  • Road Sign Assist (RSA)
  • Rear pedestrian detection
  • Acoustic Vehicle Alerting System (AVAS)
  • Intersection Turning Assist (ITA)
  • Emergency Steering Assist (ESA)
  • Front cyclist detection
  • Safe Exit Assist (SEA)
  • Lane Change Assist (LCA)
  • Front motorcyclist detection, daytime only
  • Advanced Park with Remote Control
  • Driver Monitoring System
  • Emergency Driving Stop System (EDSS)
  • Proactive Driving Assist (PDA)
  • Drive Mode Select, Eco / Rear Comfort / Normal / Custom / Sport
Interior
  • Cold area package
  • Leather trimmed gearshift knob
  • Paddle-shift controls
  • Steering column, electrically multi-adjustable
  • Heated steering wheel
  • 3-spoke, leather and wood trimmed steering wheel
  • Temporary spare wheel
  • Soft closing automatic doors
  • Auto door locking
  • Tailgate, push button release
  • Tailgate, height memory function
  • Tailgate, electric lift and close
  • Glovebox illumination, LED
  • Door courtesy lights, LED
  • Luggage room lights, LED
  • Rear-view mirror, electro chromatic (auto-dimming)
  • Rear side window sunshades, electric
  • Rear quarter window sunshades, electric
  • Resin scuff plates, front doors
  • Resin scuff plates, rear doors
  • Cup holders, front
  • Cup holders, rear
  • Cup holders, third row
  • Storage box, front centre armrest
  • Automatic air recirculation control
  • Lexus Climate Concierge
  • Remote climate control
  • S-Flow technology for climate control
  • Electronic climate control, 4-zone
  • Shoulder switch for front passenger seat adjustment
  • Rear captain seats
  • Side folding third row seats
  • Manually folding third row seats, 50/50 split
  • Semi-aniline leather upholstery
  • L-aniline leather upholstery, rear seats
  • Semi-aniline leather upholstery, third row seats
  • Tahara trim, front centre armrest
  • Rear relaxation seat on passenger's side
  • 4-way lumbar support, driver seat
  • 2-way lumbar support, front passenger seat
  • Easy entry and exit function, driver seat retracts/returns
  • Easy entry and exit function, steering wheel retracts/returns
  • Heated front seats
  • Heated rear seats
  • Ventilated front seats
  • Ventilated rear seats
  • 8-way electrically adjustable driver seat
  • 4-way electrically adjustable front passenger seat
  • 12V socket, front
  • 220V socket, luggage compartment
  • Driving position memory (seat, steering wheel, outer mirrors) - 3 user profiles
  • Push start button
  • Smart entry and start system
  • Rear centre armrests, independent captain seats
  • Clean air filter with pollen / PM removal and deodoriser
  • L emblem embossed on front headrests
  • 2-way manually adjustable headrest, driver
  • 2-way manually adjustable headrest, front passenger
  • Multi-colour ambient lighting
  • Rear seat reading lights, LED
  • Electrically reclining rear seats
  • Electrically sliding rear seats, independent captain seats
  • Door panel finish, suede
  • Smart digital key
  • Smart key, Ultra-Wideband (UWB)
  • Bright interior package
  • Dark interior package
  • Glass moon roof
  • Electrically operated sunroof blinds
  • e-Latch door lock system, front doors
  • Instrument panel, Tahara
  • Instrument panel, Tahara and suede fabric
  • Door panel finish, Tahara
  • Folding table in rear seat armrests
  • Instrument panel inlay, Yabane Herringbone Woodgrain
  • Front centre console, Yabane Herringbone Woodgrain
  • Electronic climate control with nanoe™ X technology
  • Manually sliding third row seats, 50/50 split
  • Shoulder switches for rear passenger seat adjustment
  • L emblem embossed on rear headrests
  • Tahara and suede fabric, front centre armrest
  • Rear relaxation seat on driver's side
  • Rear passenger seat position memory - 2 user profiles
  • 10-way electrically adjustable rear seat on driver's side
  • 10-way electrically adjustable rear seat on passenger's side
  • Rear massage seats
  • Heated ottoman, rear seats
  • Heated armrests, rear seats
  • Manually reclining third row seats, 50/50 split
  • 2-way manually adjustable rear headrests
Interior
  • Anti-theft system - siren
  • Anti-theft system - immobiliser
  • Anti-theft system - inclination sensor
  • Anti-theft system - intrusion sensor
  • Double door lock
  • Wireless door lock
  • Anti-theft system - Ultra-Wideband (UWB)
Interior
  • Child safety door lock
  • Seatbelt pre-tensioners, front seats
  • Seatbelt pre-tensioners, rear seats
  • i-Size attachment, outer rear seats
  • ISOFIX attachment, outer rear seats
  • Curtain shield airbags
  • Side airbags, driver and front passenger
  • Airbag cut-off switch, front passenger
  • Audible and visual seatbelts reminder, front seats
  • Audible and visual seatbelts reminder, rear seats
  • Dual-stage airbags, driver and front passenger

Standard equipment

Customise

Standard equipment

Drive Mode Select, Eco / Rear Comfort / Normal / Custom / Sport
Proactive Driving Assist (PDA)
Emergency Driving Stop System (EDSS)
Driver Monitoring System

POST https://dxp-webcarconfig.lexus-europe.com/v1/equipment-standard/gb/en?modelId=4aa28d74-388f-49f2-9fd1-2d7366107901&carId=867e6a9c-ed55-496a-af55-7e2cd367106f&carColourId=be0aae7d-d4e4-4876-9ef0-1d622f848662

POST https://dxp-webcarconfig.lexus-europe.com/v1/equipment-optional/gb/en?modelId=4aa28d74-388f-49f2-9fd1-2d7366107901&carId=867e6a9c-ed55-496a-af55-7e2cd367106f&carColourId=be0aae7d-d4e4-4876-9ef0-1d622f848662

TECHNOLOGY

EXTRA-WIDE 10” HEAD-UP DISPLAY

Driving data from the LM 350h (7-seater) is projected in colour directly onto the windscreen. This 10” Head-Up Display lets you check navigation, safety features, information and audio settings without taking your eyes off the road. Operation is easy, thanks to touch switches on the steering wheel.

23-SPEAKER MARK LEVINSON® (4-SEATER)

The near-silent LM 350h 4-seater cabin provides the perfect setting for the bespoke new 23-speaker Mark Levinson® Premium Surround Sound audio. Developed with our exclusive audio partners, Mark Levinson, the system is optimised for the car’s interior architecture. Delivering a peerless 7.1-channel home-theatre experience using a new 3D Surround Mark Levinson® Surround System and Quantum Logic Immersion, ClariFi analyses the compressed sound source and complements lost data for exceptional sound quality. Enhancing the concert hall experience even further, speakers are arranged on the MPV’s broad ceiling, creating a three-dimensional sound stage. The bulkhead speakers, located above the 48” screen to be closely aligned with your ears, produce rich and powerful sound, vividly expressing the atmosphere of the original music. Finally, a Blu-ray player built into the bottom left side of the partition plays Blu-ray Discs, DVDs and CDs.

SAFETY

ENHANCED PRE-COLLISION SYSTEM

Alongside detecting motorcycles during daytime, the enhanced Lexus Pre-Collision System allows more potential collisions to be avoided, such as at left/right turns, and with cut-in traffic. It can also recognise collision risks with oncoming traffic or crossing pedestrians when making a turn at a junction. The ability to avoid impacts is increased by Emergency Steering Assist.

DYNAMIC RADAR CRUISE CONTROL

This system uses a millimetre-wave radar sensor and camera to detect the vehicle in front and maintain an appropriate distance. If the vehicle in front comes to a halt, the LM will stop too. When the vehicle moves off again, you will too. It quickly recognises traffic cutting in front and, in conjunction with Lane Trace Assist*, follows a more natural line through bends. Dynamic Radar Cruise Control will also prevent you from driving inside a slower vehicle driving in the outside lane.

*Advanced Lane Trace Assist helps keep the LM in the centre of the lane, uses ‘natural lane trace’ functionality and provides assistance when driving around bends.

BLIND SPOT MONITOR

Radar devices mounted in the rear bumper detect vehicles in adjacent lanes that are not visible in the door mirrors. If the driver is indicating to change lane and a vehicle enters the blind spot, a warning signal appears in the relevant door mirror.

ADAPTIVE HIGH-BEAM SYSTEM (AHS)

An adjustable LED Adaptive High-beam System prevents the Lexus from dazzling other road users. Independent LED chips in the headlight are enabled/disabled for precise control of the illuminated and non-illuminated areas.

Dimensions

Height (mm) 1890

LM - LM350h AWD - SUV

Width (mm) 1890

LM - LM350h AWD - SUV

Length (mm) 5130

  • LM - LM350h AWD - SUV
  • LM - LM350h AWD - SUV
  • LM - LM350h AWD - SUV

Ready to start? Choose your engine

Choose your grade:

3 Options

No results

  • LM - LM350h FWD - SUV

    LM LM350h FWD

    Hybrid
    SUV
    • +
      Advanced Park with Remote Control
    • +
      Glass moon roof
    • +
      Multi-colour ambient lighting

    Explore

    Continuously Variable Transmission | 4X2
  • LM - LM350h AWD - SUV

    LM LM350h AWD

    Hybrid
    SUV
    • +
      Advanced Park with Remote Control
    • +
      Glass moon roof
    • +
      Multi-colour ambient lighting

    Explore

    Continuously Variable Transmission | 4X4
  • LM - LM350h Takumi - SUV

    LM LM350h Takumi

    Hybrid
    SUV
    • +
      Electrically reclining rear seats
    • +
      Privacy partition with electrically operated window, dimmable
    • +
      Rear massage seats

    Explore

    Continuously Variable Transmission | 4X4
